| Desc | X12 | X20 | X40 |
|---|---|---|---|
| Output (kW) | 3 - 6 - 12 | 5 - 10 - 20 | 10 - 20 - 40 |
| Speed (mph) | 9 - 12.7 - 18.7 | 6.8 - 8.7 - 16.2 | 7.8 - 9.6 - 22.3 |
| Runtime (hh:mm) | 3:20 - 1:40 - 0:50 | 4:00 - 2:00 - 1:00 | 4:00 - 2:00 -1:00 |
| Range (mile) | 30 - 21.1 - 15.6 | 27.3 - 17.4 - 16.2 | 31.3 - 19.1 - 22.3 |
| Desc | X12 | X20 | X40 |
|---|---|---|---|
| Short Shaft - Long Shaft | Short Shaft - Long Shaft | Short Shaft - Long Shaft | |
| Weight | 48kg - 50kg | 79kg - 81kg | 99kg - 101.5kg |
| Shaft Length | 381 mm (15”) - 508 mm (20”) | 508 mm (20") - 635 mm (25") | 508 mm (20") - 635 mm (25") |
| Dimensions (L x W x H) | 560 x 266 x 978 mm - 560 x 266 x 1105 mm | 674 x 360 x 1229 mm - 674 x 360 x 1356 mm | 757 x 360 x 1233 mm - 757 x 360 x 1360 mm |
| Output power | 12 kW | 20 kW | 40 kW |
| Nominal voltage | 96 VDC | 96 VDC | 96 VDC |
| Cooling System | Natural cooling | Natural cooling | Closed Loop Liquid Cooling |
| Rated rotational speed | 1100 - 2000 rpm | 1200 - 1800 rpm | 1500 - 2100 rpm |
| Trim & Tilt | Power Trim/Tilt | Power Trim/Tilt | Power Trim/Tilt |
| Trim/Tilt Angle | -4° to 61° | -4° to 61° | -4° to 61° |
| Steering | Integrated electric steering | Integrated electric steering | Integrated electric steering |
| Steering Angle | ±45° | ±45° | ±45° |
| Propeller (available in L&R rotation) | 11 13/16" x 10 5/8" 11 7/16" x 14 3/16" | 15" x 10 3/4" 13 3/8" x 16 3/4" | 15" x 10 3/4" 13 3/8" x 16 3/4" |
A comprehensive range of accessories:
- Smart Throttle
- Digital Helm
- Smart Display 5″
- Smart Display 10″
- Propellers
- G102-100 Battery
- MPPT
- Solar Charger Controller
- Battery Chargers
- DC-DC Adapters
eSSA: The Core of X-Series
Our eSSA technology ensures a hassle-free setup for your X-Series propulsion system, offering a streamlined and secure experience. The system's modular architecture allows for straightforward and safe connection of various components, while also supporting seamless integration with renewable energy sources to elevate the eco-friendliness of your boating journey.

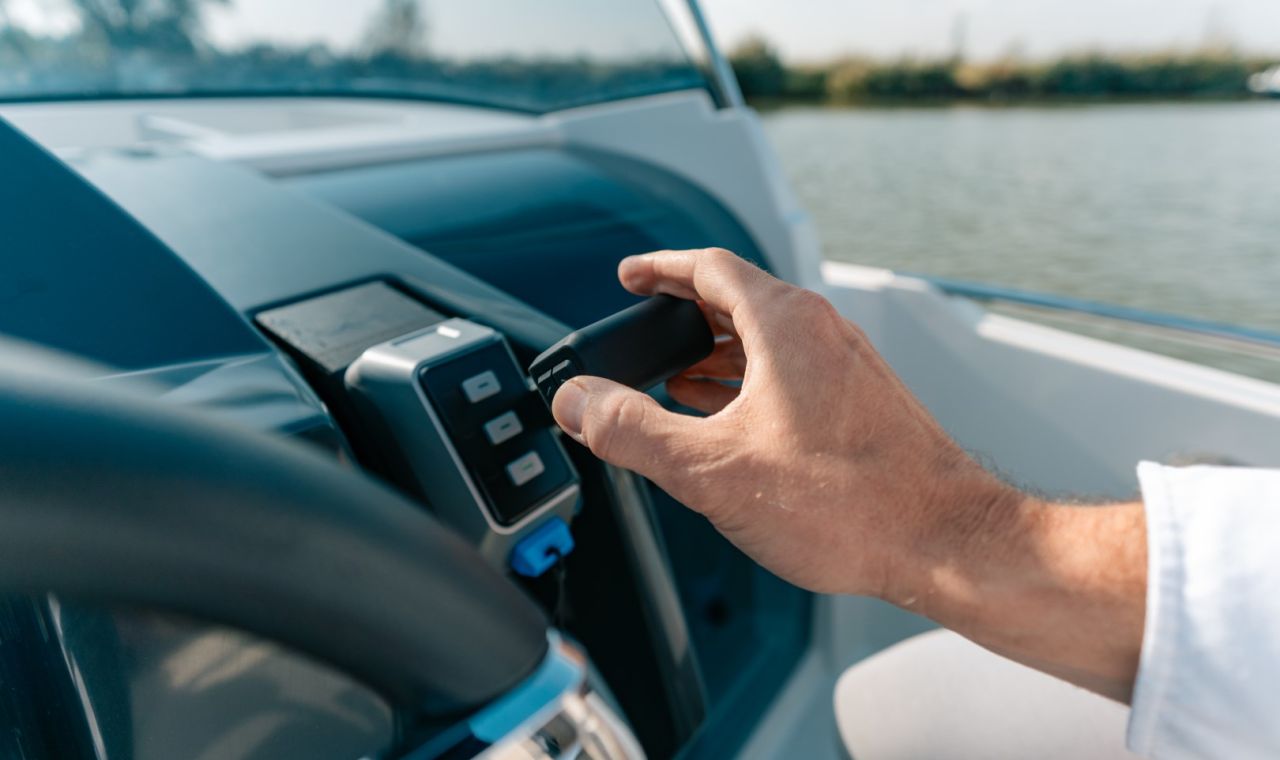

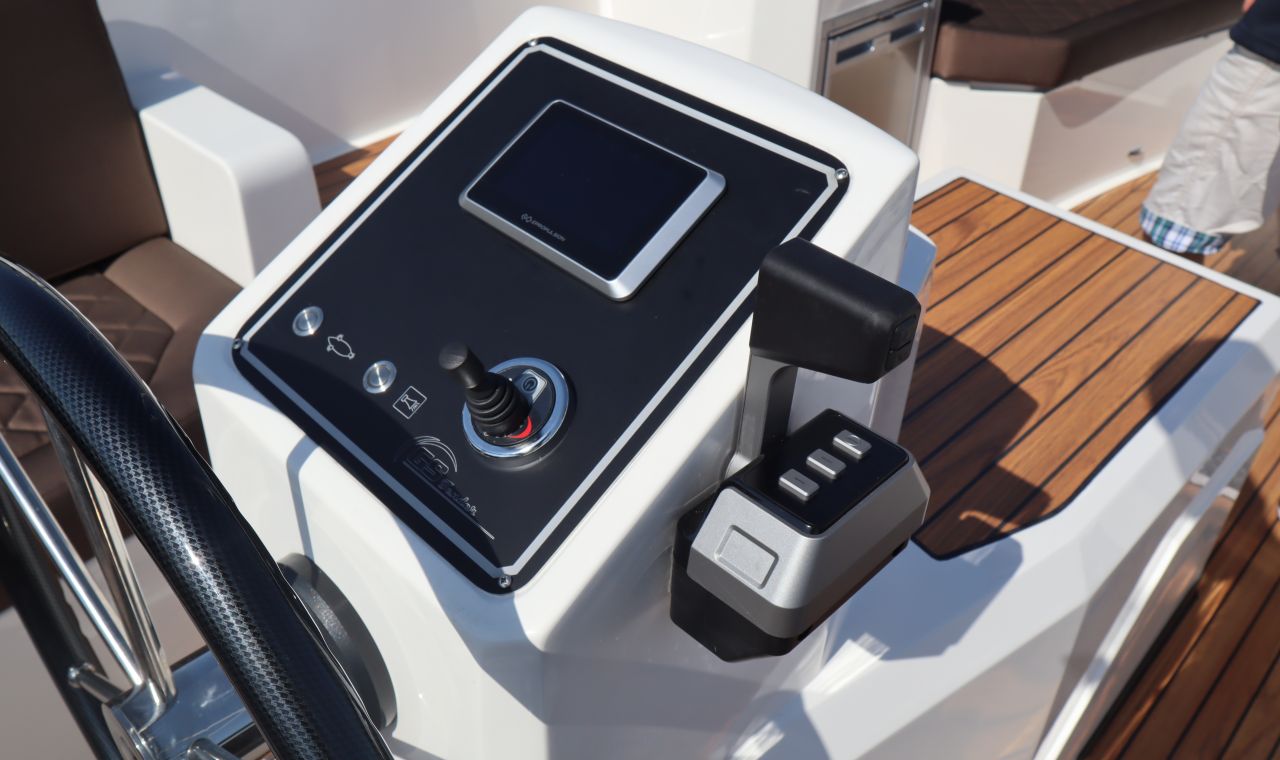

Smart Throttle and Smart Displays
offer an unparalleled user experience in both control and monitoring. With three flexible mounting options, the Smart Throttle can be easily adapted to suit your boat's specific needs, ensuring an optimal fit every time.
- Top or Side
- Single or Dual
- Port or Starboard
-
Space-saving
With a design that takes up 60% less space than traditional combustion engines, our X-Series motors offer enhanced installation flexibility and free up valuable payload space.
-
Lighter weight
At 65% lighter than conventional combustion engines and 30% lighter than comparable electric inboards, our X-Series motors offer a significant weight advantage.
-
Hydrogeneration
All X-Series models feature a built-in hydrogeneration function, allowing you to capture electricity whilst sailing.
-
Easy to install
Pre-connected internal wiring ensures an out-of-the-box experience, facilitating immediate use upon delivery.
-
Easy to maintain
Thanks to advanced technology and thoughtfully designed interfaces, our X-Series motors require considerably less maintenance than traditional combustion engines.
-

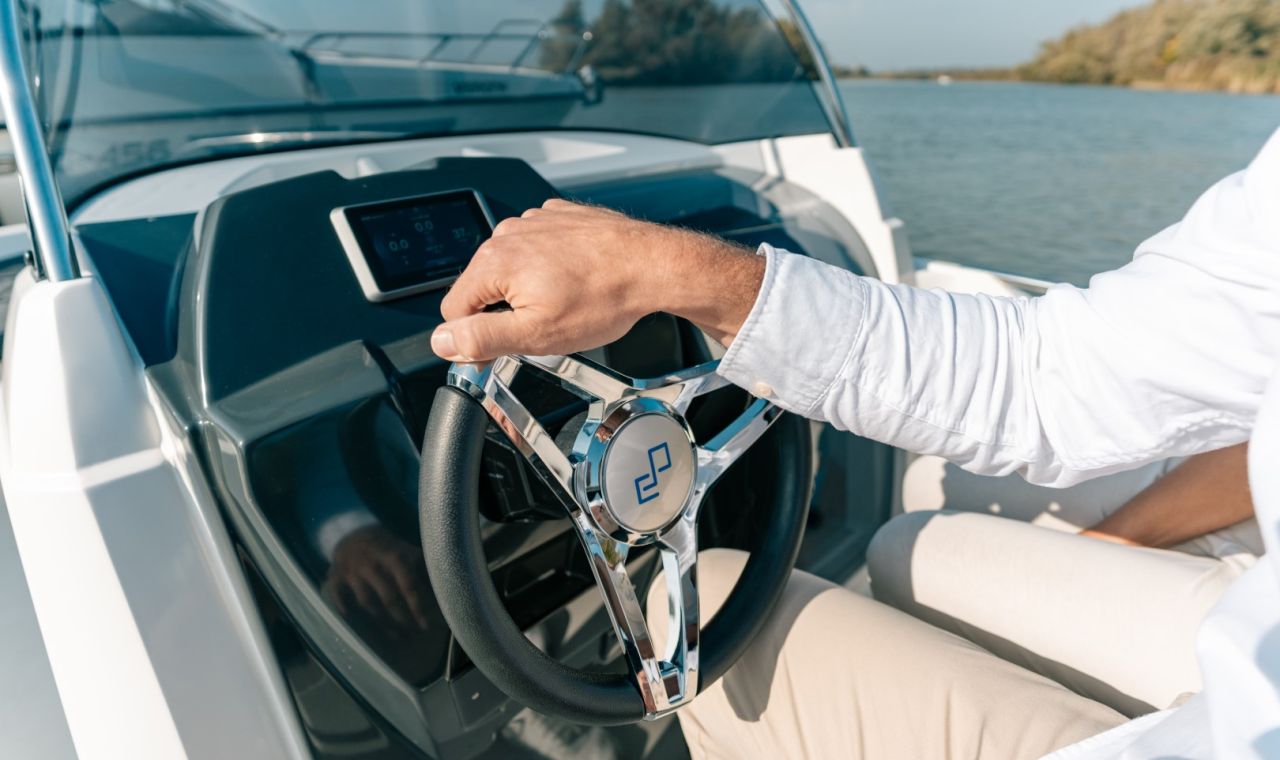

Easy to operate
The unified throttle and display panel offer a seamless, intuitive driving experience. Our smart system is designed to actively understand the user's operational intentions, making control effortless.
