Mercury Avator 7.5e

Electric outboard

The Mercury® Avator™ 7.5e electric outboard delivers speed and acceleration performance similar to a 3.5hp internal combustion outboard, making it ideally suited for a variety of small boats, tenders and as secondary power on sailboats. Available in tiller and remote steer models, it features a quick-connect battery and intuitive controls that make setup and operation a breeze. With advanced displays and other technologies that monitor your battery level and range, you can explore the water with confidence.

Intuitive, innovative features

  • Quick Connect Battery

    The 1 kWh lithium-ion battery has no cables to connect. It slides into place under the flip-up top cowl, saving you valuable space within the boat. Need to go even farther? No problem. You can bring along an available spare battery that swaps into place in seconds.

  • Multi-purpose tiller handle

    The Avator tiller was designed to let anyone take the helm with confidence. It adjusts up, down, to the left or right for comfortable steering from any position or with either hand, and it folds down to become a convenient carrying handle.

  • Digital controls

    For console boats, digital remote controls deliver instant responsiveness, with no hesitation. Controls are available in three styles to fit a range of centre and side-console mounting positions.

  • Transverse flux motor

    The industry-first transverse flux motor generates high torque with little effort, for quick acceleration. With an efficient overall design, you can enjoy full, exciting days on the water.

  • High-efficiency prop

    Available in three pitches, the Avator prop is crafted from a high-strength, impact-resistant composite material. It’s three-blade design is optimised for efficiency to help extend battery life.

Avator Advantages

1 3

  • Boost Mode

    With Boost Mode, the system automatically doles out up to 20% more torque during hard accelerations, contributing to faster acceleration than similar competitive products.

  • Sustainability

    Avator outboards transform the boating experience by making boating possible with no exhaust fumes and zero direct emissions.

  • Corrosion resistance

    Every Avator outboard is engineered with Mercury’s proven corrosion-preventive materials and coatings, so you can boat confidently in freshwater or saltwater.

  • Easy storage and transport

    With no fuel and no fumes, an Avator outboard is convenient to store at home or on your boat. The quick-connect bracket enhances portability, allowing you to install the tiller model in a snap.

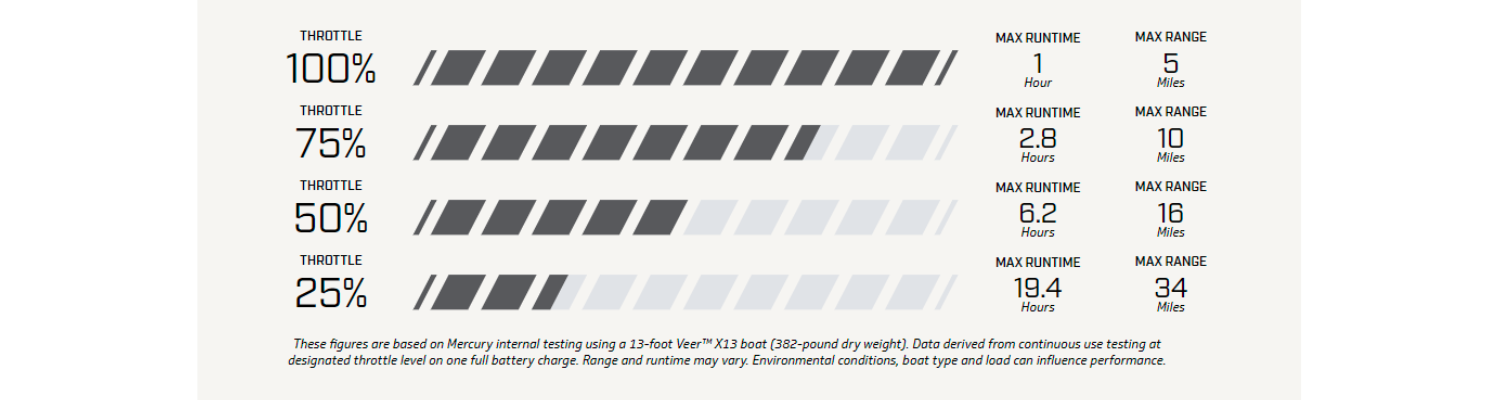

Avator 7.5e performance data

  • Range & Runtime

    Based on testing with a 13-foot Veer™ V13 boat (382-pound dry weight), the Avator 7.5e electric outboard can run for 60 minutes or 5 miles at constant full throttle, with one fully charged 1kWh battery, and up to 19 hours or 34 miles at a constant 25% throttle. Range and runtime may vary. Environmental conditions, boat type and load can influence performance.

  • Smooth & Quiet

    With its whisper-quiet motor and ultra-smooth performance, a Mercury Avator electric outboard will get you where you are going without interrupting the conversation. The 7.5e outboard is four times quieter to the operator than a 3.5hp four-stroke outboard at full throttle.

  • Superior Efficiency

    From the transverse flux motor to the lithium-ion battery, we engineered every aspect of the Avator propulsion system to optimise efficiency. The 7.5e outboard has greater system efficiency than similar competitive electric outboards.

Avator Accessories

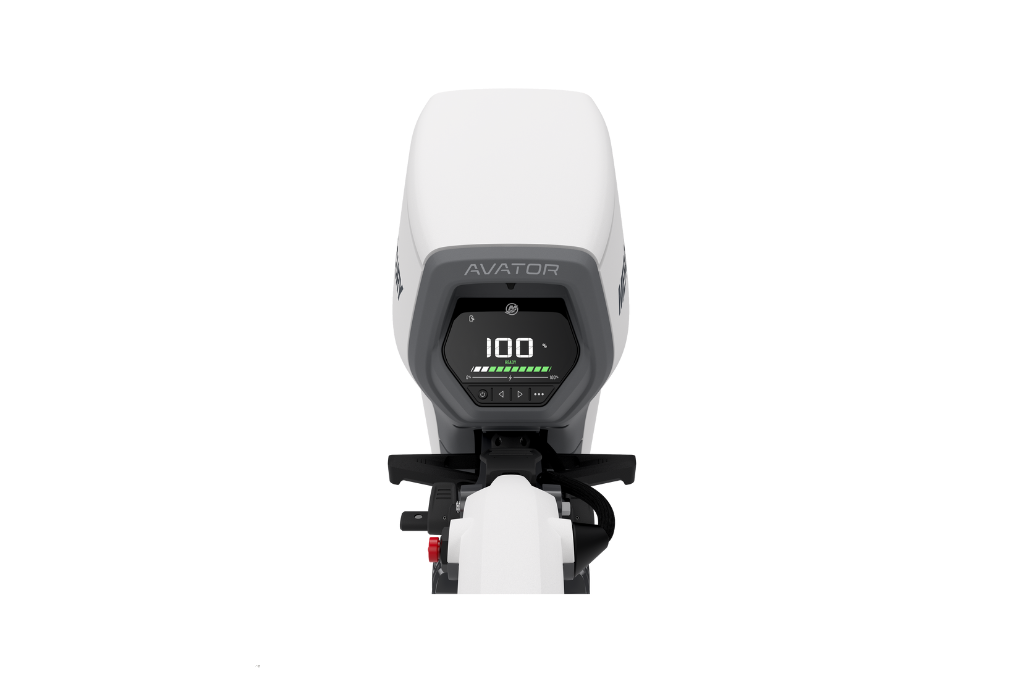

  • Avator displays

    Vivid full-colour Avator displays make it easy to monitor the battery level, power, alerts, remaining runtime and more. On tiller models, the display is integrated on the outboard, while remote models pair with a helm display. Integrated GPS enables real-time speed and “distance-to-empty” estimates.

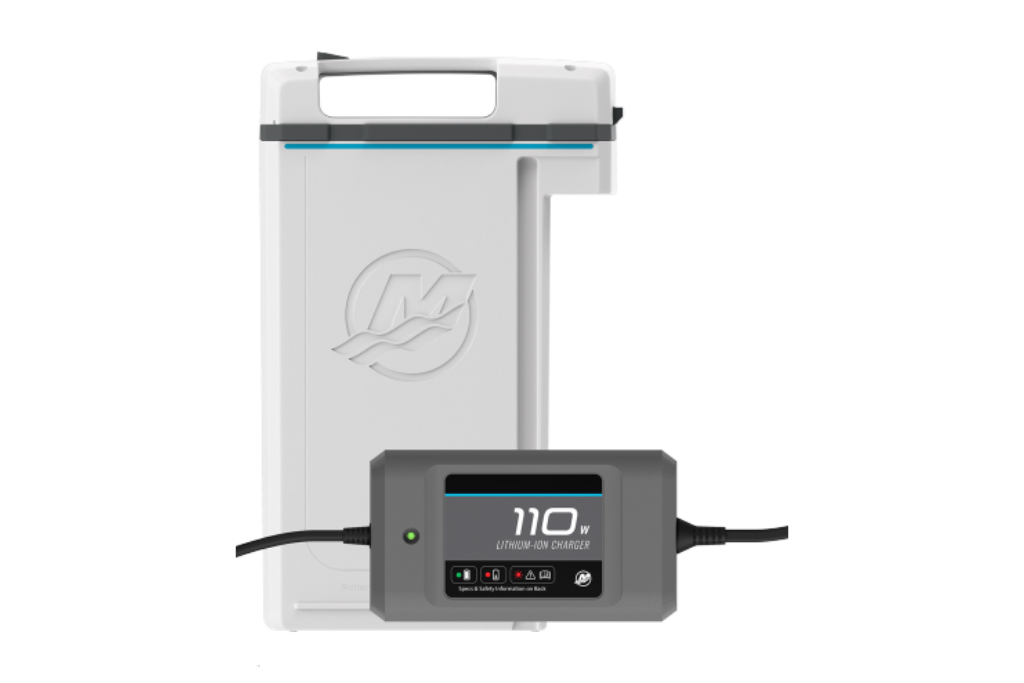

  • Safe, smart charging

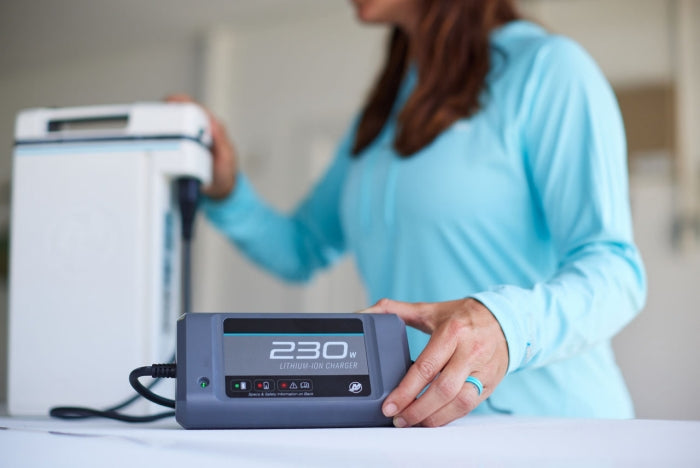

    Avator smart chargers constantly monitor the voltage and current to deliver a safe, effective charge. The Avator 7.5e outboard comes with a 110W charger that is ideal for packing in a carrying bag. You can also upgrade to a higher-speed charger for a charge time that meets your needs. All you need to charge is a standard household outlet.

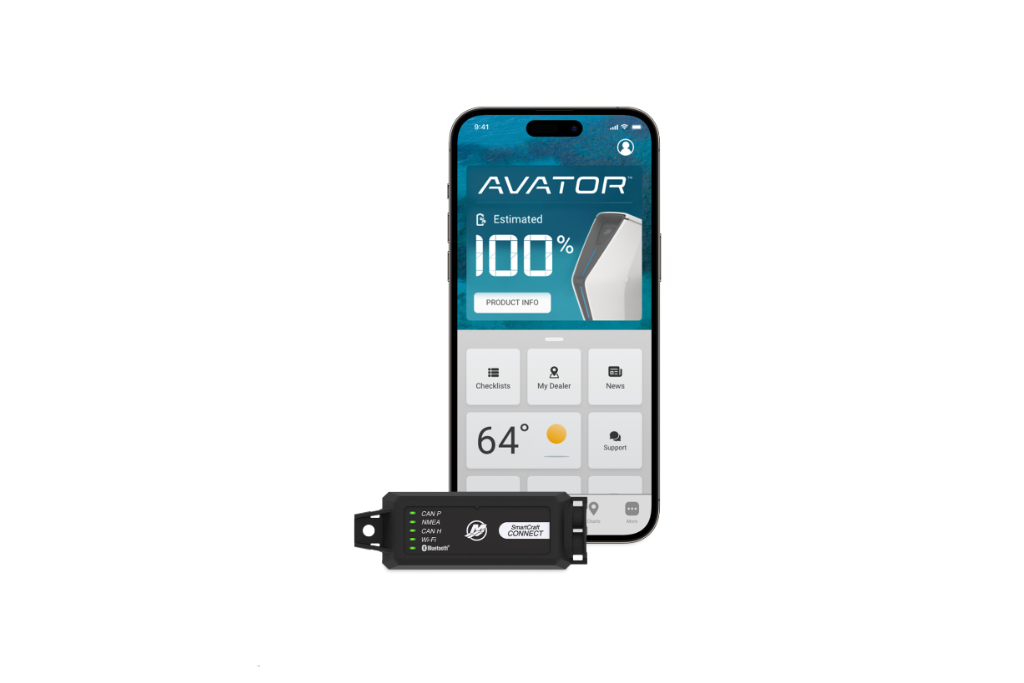

  • SmartCraft Connect and the Mercury Marine app

    Download the Mercury Marine app for free to enjoy basic functionality, including a library of tutorials and the ability to connect with a preferred dealer for expert support. Adding a Mercury SmartCraft® Connect module to your 7.5e outboard lets you wirelessly connect it with the app, unlocking additional features like a GPS map with visualised range estimates and much more.

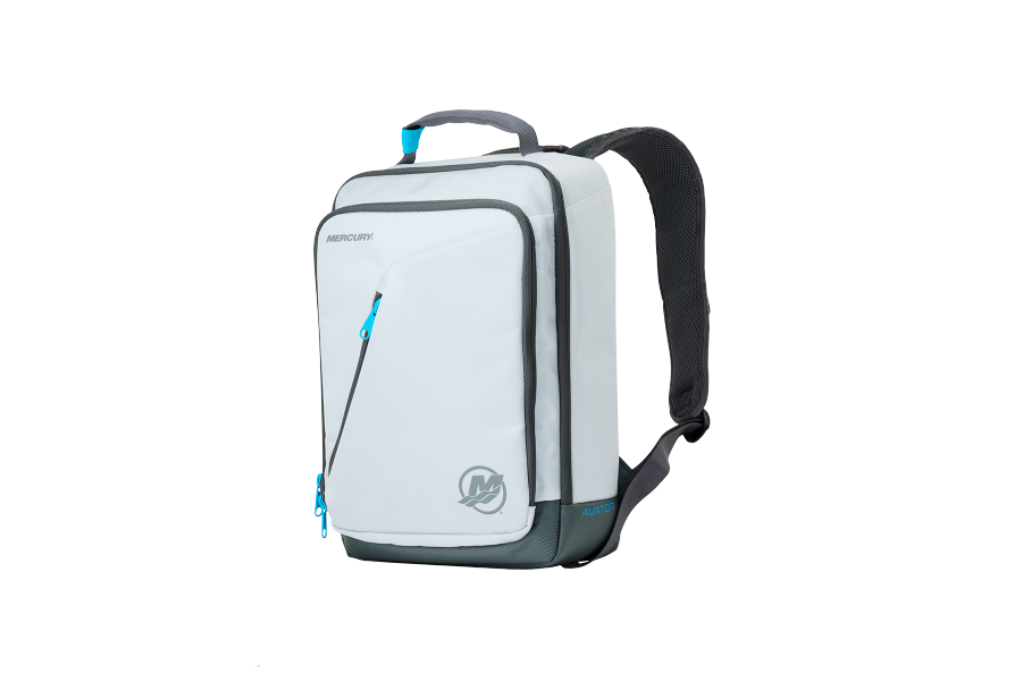

  • Accessories

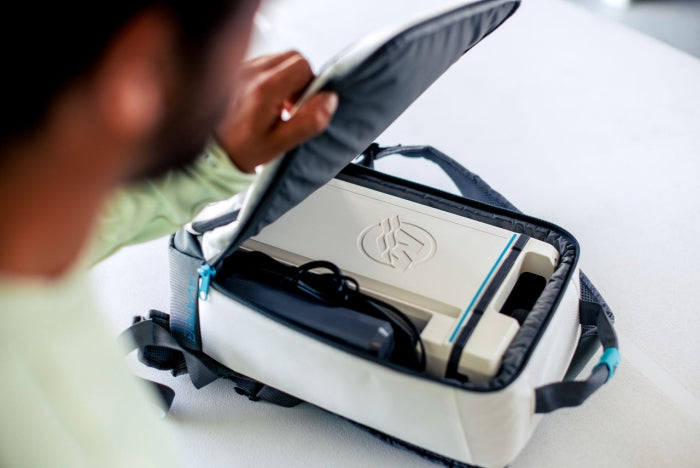

    Whether you are a backcountry boater or you use your Avator outboard on a tender for a larger vessel, our accessory options help make days on the water easier. They include a custom-fit outboard carrying bag that fits the 15-inch-shaft tiller model, faster chargers, a battery carrying bag and spare batteries.

Specifications

Battery

Integrated 1kWh

Battery IP rating

IP67

Battery Type

Lithium Ion

Battery Weight (1kWh)

17 lbs / 7.7 kgs

Charger (Standard)

110W

Input Power

916W

Rated Prop Shaft Power

750W

Rated Voltage

48

Standard Propeller

12.7 x 7P

Total Weight Excluding Battery

43 lbs / 19.5 kgs
