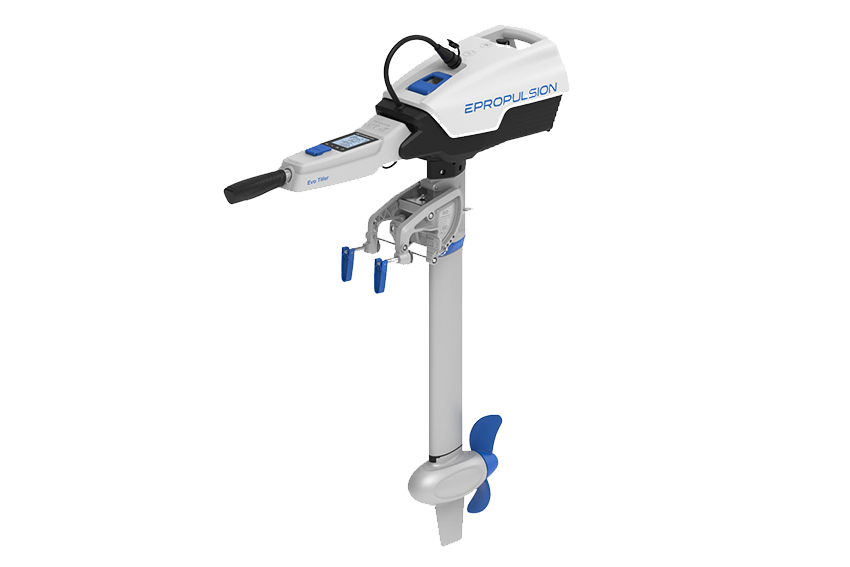

ePropulsion Spirit 1.0 EVO - 1kW

ePropulsion Spirit 1.0 EVO - 1kW

£850.00 GBP
£850.00 GBP
Sale Coming Soon
Tax included.
Power

Spirit 1.0 Evo Remote 3HP 1kW

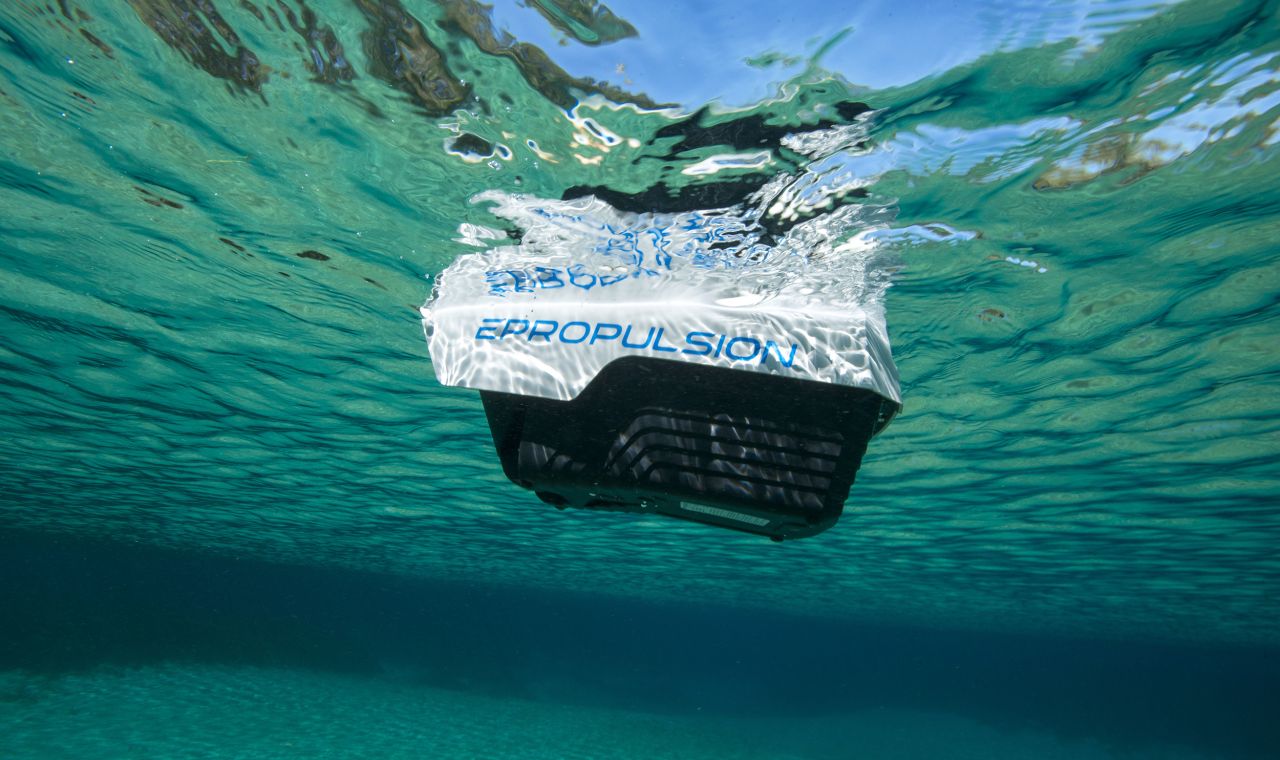

Spirit 1.0 Evo is a portable 3HP electric outboard made for dinghies, fishing boats, and sailboats. It features a 1276Wh large integrated lithium battery for long range. The hydrogeneration function is great for sustainable sailing experience. The optional safety wristband keeps you safe in case of MOB.

Spirit 1.0 Evo is ideal for replacing small petrol outboard motors to create a simple, hassle free electric boat.

This model is designed for remote steering applications.

Learn More

User Manual

Scan the QR code below to open this page:
View full details

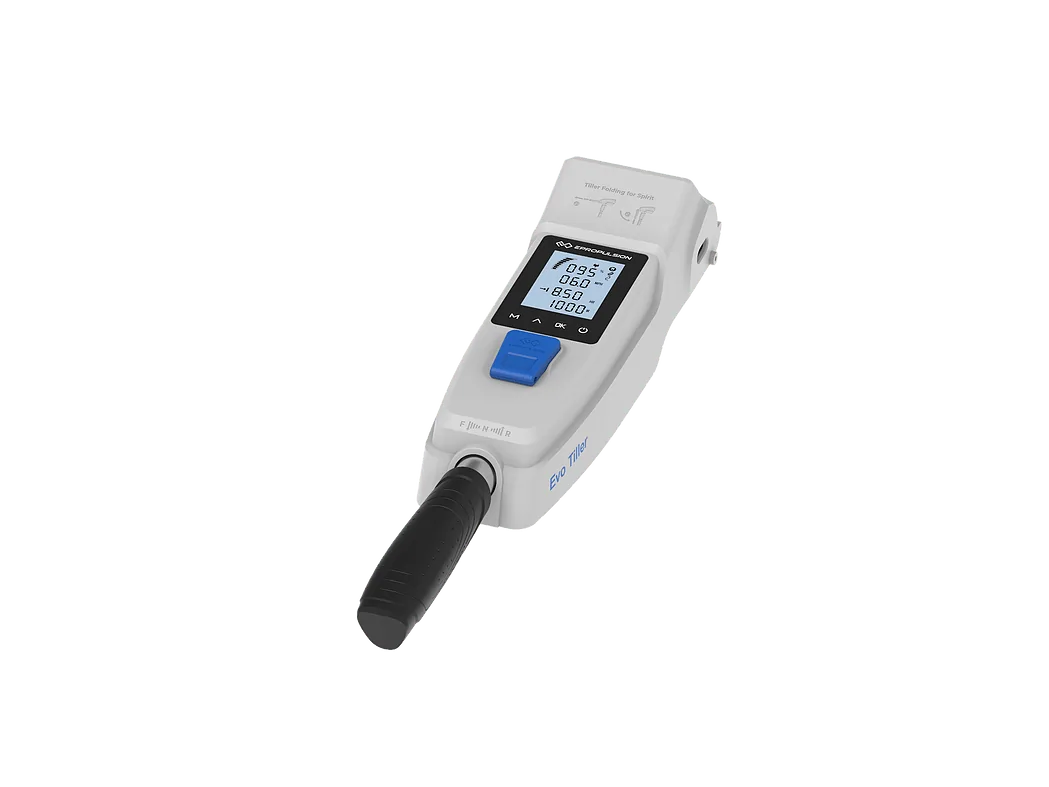

Digital Operation

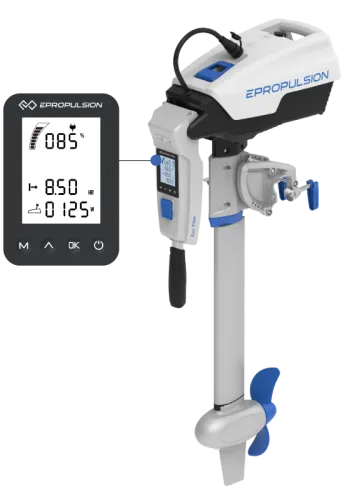

  • 1 - Digital Display

    Offers real-time monitoring of the power, remaining runtime, battery level, voltage, etc.

  • 2 - Electric Start

    Press one button and you’re ready to go. No more tricky pull starts on cold mornings

  • 3 - Magnetic Kill Switch

    Works as an emergency stop key for ePropulsion electric outboards. Keeps you safe on the boat.

  • 4 - Smooth Throttle Changing

    Designed with excellent throttle response and clear throttle hand feel.

  • 5 - Adjustable Max Power Output

    Customize the max throttle power to make the motor kid-friendly or suitable for rental boats.

  • 6 - Ambidextrous Operation

    Turning throttle easily either from the left-hand or right-hand side.

Performance & Power

POWER (W) SPEED (MPH/KPH) RUNTIME (HH:MM) RANGE (MILE/KM)
35 2.2 / 3.5 36:25 80 / 129
65 2.7 / 4.3 19:35 53 / 85.3
125 3.5 / 5.6 10:00 35 / 56
250 4.4 / 7.1 5:00 22 / 35.5
500 5.3 / 8.5 2:30 13.3 / 21.3
750 5.7 / 9.2 1:40 9.5 / 15.3
1,000 6.2 / 10 1:15 7.8 / 12.5

Specs

Description PLUS EVO EVO REMOTE
Power 1 kW (3HP equivalent) 1 kW (3HP equivalent) 1 kW (3HP equivalent)
Standard Battery Spirit Battery Plus, 1276 Wh li-ion polymer Spirit Battery Plus, 1276 Wh li-ion polymer Spirit Battery Plus, 1276 Wh li-ion polymer
Input Voltage 39V – 60V 39V – 60V 39V – 60V
Motor Weight (short shaft) 10.6 kg / 23.4 lbs 11.3 kg / 24.9 lbs 10.6 kg / 23.4 lbs
Battery Weight 8.7 kg / 19.2 lbs 8.7 kg / 19.2 lbs 8.7 kg / 19.2 lbs
Standard Charging 8.5 Hrs 8.5 Hrs 8.5 Hrs
Fast Charging 3.5 Hrs 3.5 Hrs 3.5 Hrs

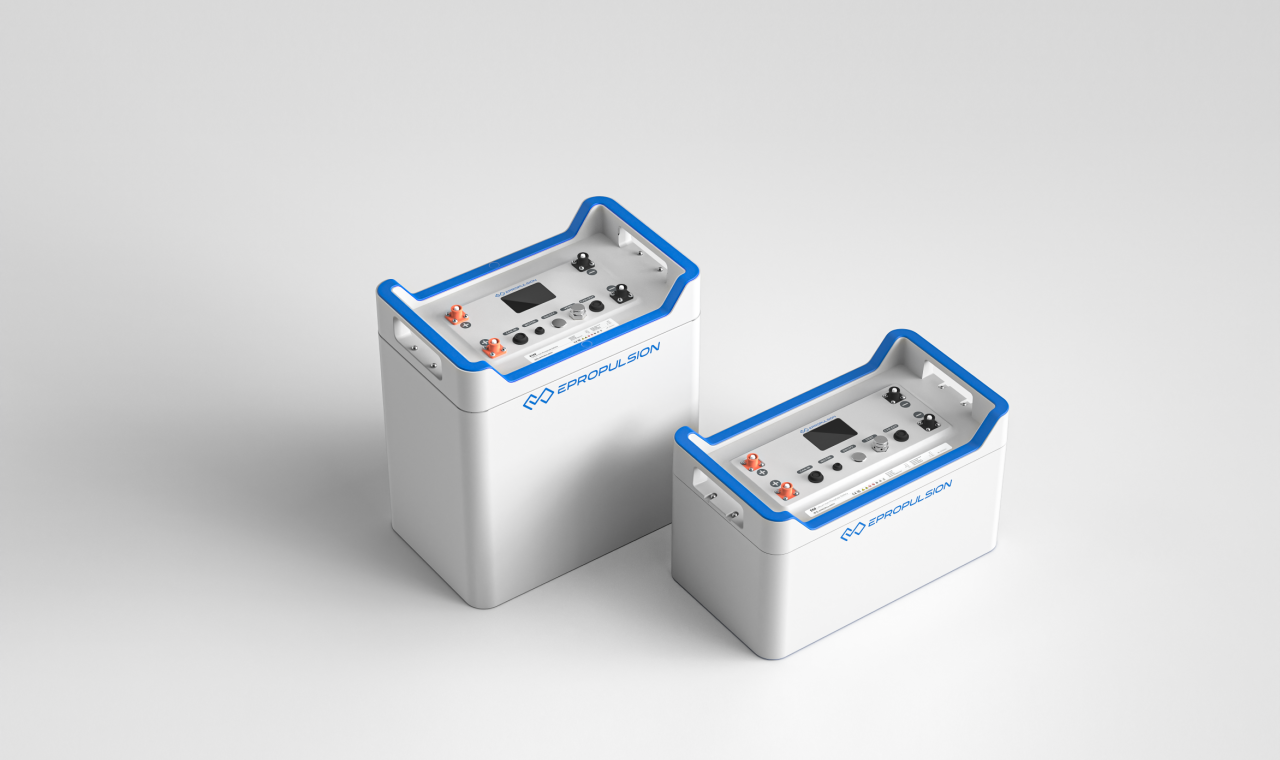

External Battery Yes, and E-Series Battery recommended Yes, and E-Series Battery recommended Yes, and E-Series Battery recommended
Propeller 11″ × 5.8″ 2-blade composite propeller 11″ × 5.8″ 2-blade composite propeller 11″ × 5.8″ 2-blade composite propeller
Trim / Tilt Angle 0°, 7°, 14°, 21° / 70° 0°, 7°, 14°, 21° / 85° 0°, 7°, 14°, 21° / 85°
Shaft Length Extra Short, Short, Long Short, Long Short, Long

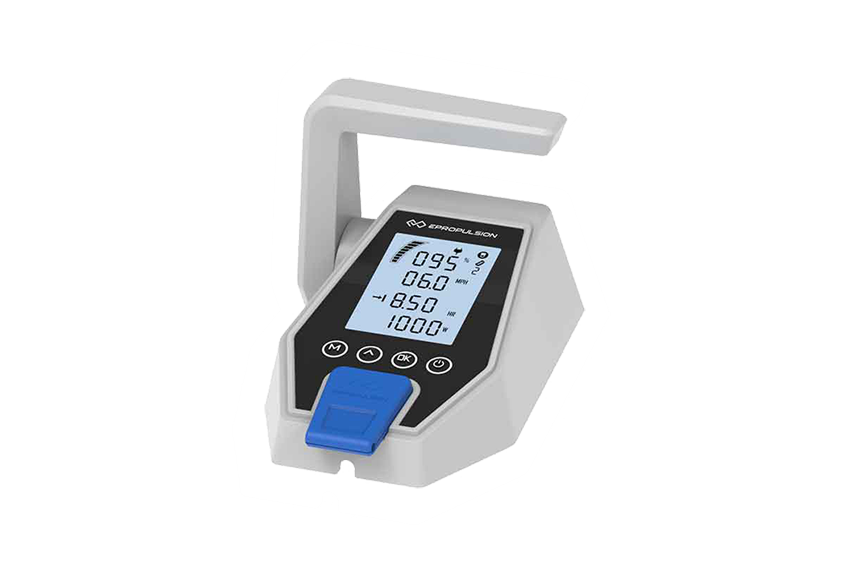

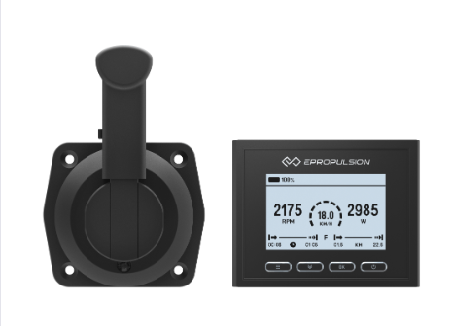

Control Tiller Evo Tiller Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
Hydrogeneration No Yes Yes
Motor Brushless DC motor Brushless DC motor Brushless DC motor
Direct Drive Yes Yes Yes

Introducing the Spirit 1.0 Evo
